• Range of colours available - Can be colour matched or contrasting for an artistic touch


• Solidified adhesive in rod application - Ensures a watertight edge seam providing a secure and serviceable join


• Water Resistant - Adds a barrier to the edge of the flooring

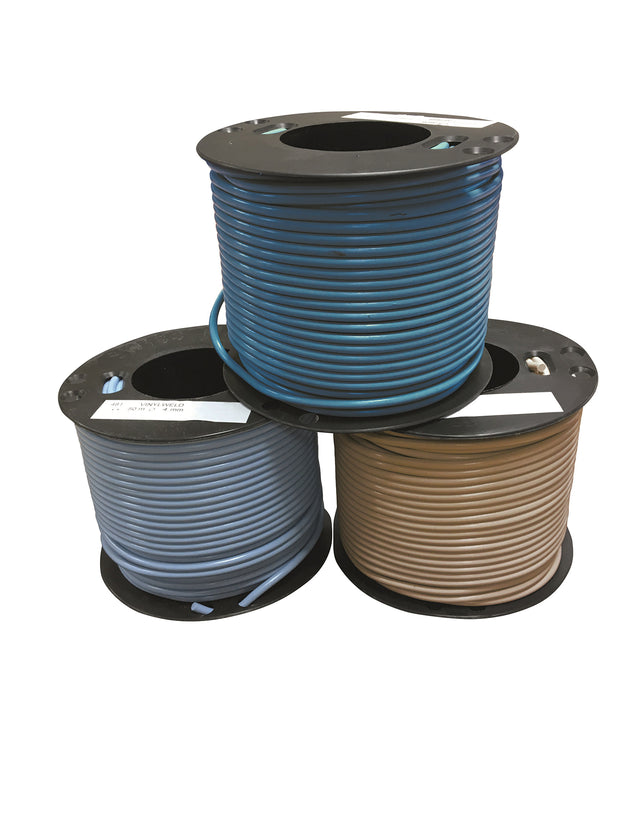

AKW Weld Rod Cement 100m roll

Application: Weld rod is melted and fused by means of a hot air welding gun, into a joint that has been grooved into the material.
Usage: To create a tight edge fitment along the seam to provide a secure and serviceable join for general purpose locations.
Installation: Heat welding should only be done after the flooring adhesive has set, usually the day following the installation and welded at a temperature of approximately 3500C.
Material: PVC
Unit: 1m lengths
Light Reflective Values: 55 (Dementia Friendly)
Storage before installation: Recommended between 150C and 250C

• Range of colours available - Can be colour matched or contrasting for an artistic touch


• Solidified adhesive in rod application - Ensures a watertight edge seam providing a secure and serviceable join


• Water Resistant - Adds a barrier to the edge of the flooring

AKW Weld Rod Ivory 100m roll

Application: Weld rod is melted and fused by means of a hot air welding gun, into a joint that has been grooved into the material.
Usage: To create a tight edge fitment along the seam to provide a secure and serviceable join for general purpose locations.
Installation: Heat welding should only be done after the flooring adhesive has set, usually the day following the installation and welded at a temperature of approximately 3500C.
Material: PVC
Unit: 1m lengths
Light Reflective Values: 56 (Dementia Friendly)
Storage before installation: Recommended between 150C and 250C

Sensor flush with flush mechanism

Requires 4 x AA batteries (not supplied)
Sensor flush supplied with flush valve
Compatible with select AKW Navlin and Livenza Plus cisterns, available separately

Specification Sheet
Installation Instructions

AKW 2000 series shower seats are carefully designed, comfortable and rust proof. The compact option is designed for smaller enclosures and where space is limited.

Features & Benefits

• Made from rust proof aluminium
• Adjustable seat height - 482mm to 607mm
• Available with or without seat and back padding in a choice of grey or blue options
• High contrast seating for visually impaired users
• Compact option, designed for smaller enclosures and where space is limited
• Comfortable in use
• For users up to 158kg/25 stone
• + or - 13mm fine adjustment to support leg to allow for gradient in floor
• Available in mid grey and dark blue

Certifications

• Tested to BS EN 12727:2000

Please note: 2000 Series seats are not supplied with an extra pair of legs

AKW Silentflow+ PGTF 22mm

• Replaces 15mm & 22mm PGTF
• If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
• Quiet performance at all flow rates
• Integrated 22mm JG fitting
• Bayonet or screw fit cover
• Improved aesthetics over existing PGTF
• Dual chambers balance flow and reduce gulping effect
• Baffles reduce noise escaping chambers
• Flow guides encourage linear flow
• Bayonet cover fits existing TF75
• Compatible with all AKW shower waste pumps
• Depth below tray 48mm/overall depth 55mm
